SHM__-5-K

PDF

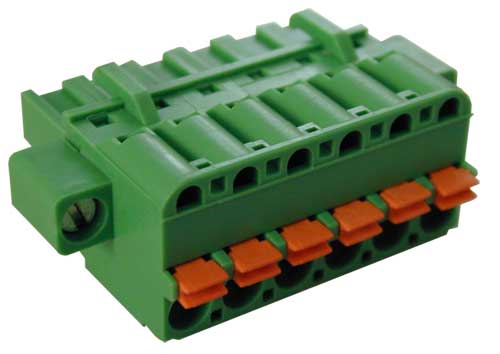

Screwless plug-in connector - w/flange screw - Pitch 5mm - 02÷22 poles
SHM___5_K6
GENERAL INFORMATION
pitch 5 mm
Height 15 mm
Depth 23.7 mm
Dimensional class Media
Wire section 2.5 mm² / 14 AWG
Clamp opening size -
Wire stripping max 10 mm
Operating temperature --40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 12 A
Voltage 250 V
impulse voltage 4 kV
MECHANICAL CHARACTERISTICS
Screw -
Recommended torque -
APPROVALS DATA
UL 1059
Current - - 16 A factory / 16 A field
Voltage - - 300 V
Wire section - - 12 AWG
Torque - - -
FILE - - E178356
MATERIALS
Housing PA - UL 94 V0
Screw -
Clamp-
Terminal Tin-plated copper alloy
COLOURS
Standard On request
POLESNAME3D FILE
