NEW PRODUCTS: MVL47 series

PCB terminal block with interlinked connection units

euroclamp is proud to introduce the new series of pcb terminal block with interlinked connection units: MVL47 series

MVL477-7,5-V-YG MVL475-7,5-V
YG MVL47

drawing

Advantages:

  • compact profile;
  • connection units are interlinked. They are physically joined to each other. MVL47 has two connection units for wiring (input-output) + two pins for soldering on the pcb;
  • welding fumes output;

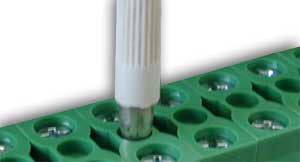

  • MVL47 has a cavity for the test probe;
    test probe
  • wire section: up to 6 sqmm for both solid and stranded wire;
  • different pitches: 7.5mm, 15mm;
  • several colours available: green, grey, black, blue, red, yellow, orange, etc… and yellow-green too!;
  • stackable version: you can put them side by side;
  • modular version;
  • padprinted version. Availability of self-adhesive labels;
  • optional version available: approved for the EN60335 standard (glow-wire test standard);
  • also available with one connection unit + 2 pins;

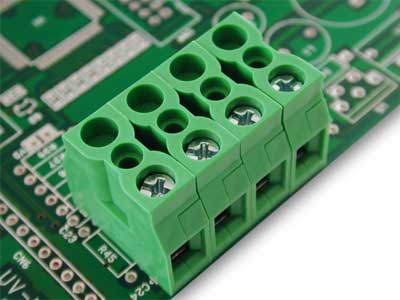

    mvl47-v1
  • other customizations on demand, etc.
