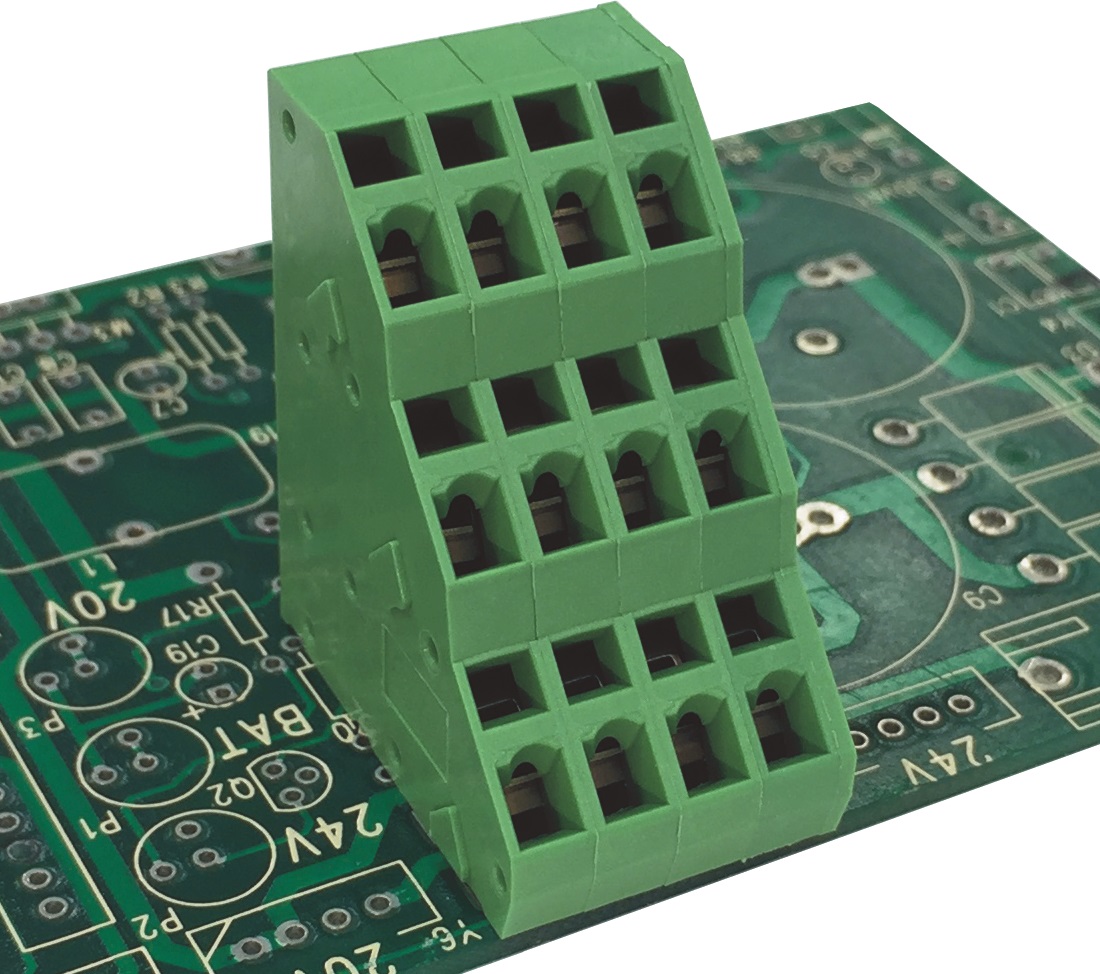

| GENERAL INFORMATION |
| pitch |
5,08 mm |
| Height |
39 mm |
| Depth |
31.2 mm |
| Dimensional class |
Bassa |
| Wire section |
2.5 mm² / 14 AWG |
| Clamp opening size |
- |
| Wire stripping |
max 9 mm |
| Operating temperature |
-40 ÷ +105 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
24 A |
| Voltage |
250 V |
| impulse voltage |
2 kV |
| MECHANICAL CHARACTERISTICS |
| Screw |
- |
| Recommended torque |
- |
| APPROVALS DATA |
|
 |
 |
|
|
| | UL 1059 |
|
Current |
- |
- |
16 A factory / 16 A field |
| Voltage |
- |
- |
300 V |
| Wire section |
- |
- |
12 AWG |
|
Torque |
- |
- |
- |
|
FILE |
- |
- |
E178356 |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
- |
| Spring | Spring steel |
| Terminal |
Tin-plated copper alloy |
| COLOURS |
|
Standard |
On request |
 |
|
| POLES | NAME | 3D FILE | | 01 | MG1T01-5,08 | File not available for this product | | 02 | MG1T02-5,08 | File not available for this product | | 03 | MG1T03-5,08 | File not available for this product | | 04 | MG1T04-5,08 | File not available for this product | | 05 | MG1T05-5,08 | File not available for this product | | 06 | MG1T06-5,08 | File not available for this product | | 07 | MG1T07-5,08 | File not available for this product | | 08 | MG1T08-5,08 | File not available for this product | | 09 | MG1T09-5,08 | File not available for this product | | 10 | MG1T10-5,08 | File not available for this product | | 11 | MG1T11-5,08 | File not available for this product | | 12 | MG1T12-5,08 | File not available for this product | | 13 | MG1T13-5,08 | File not available for this product | | 14 | MG1T14-5,08 | File not available for this product | | 15 | MG1T15-5,08 | File not available for this product | | 16 | MG1T16-5,08 | File not available for this product | | 17 | MG1T17-5,08 | File not available for this product | | 18 | MG1T18-5,08 | File not available for this product | | 19 | MG1T19-5,08 | File not available for this product | | 20 | MG1T20-5,08 | File not available for this product | | 21 | MG1T21-5,08 | File not available for this product | | 22 | MG1T22-5,08 | File not available for this product | | 23 | MG1T23-5,08 | File not available for this product |
|

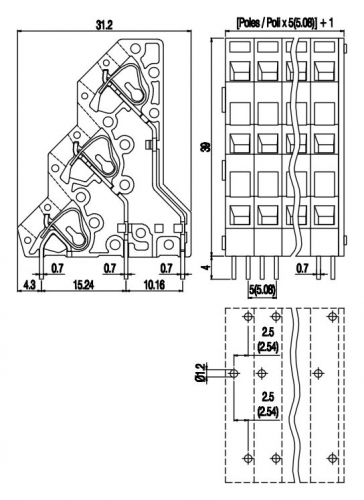

| DIMENSIONAL IMAGE |  |
|
