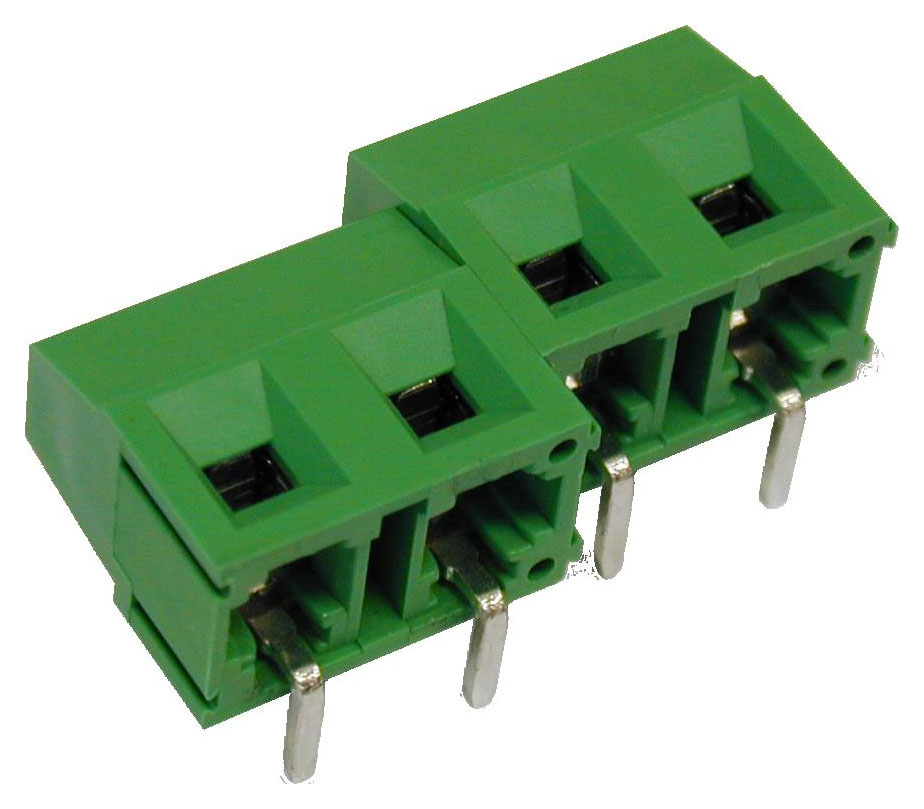

GENERAL INFORMATION |
pitch |
7,5 mm |
Height |
13.2 mm |
Depth |
8.9 mm |
Dimensional class |
Bassa |
Wire section |
1.5 mm² / 16 AWG |
Clamp opening size |
2.5 x 2.1 mm |
Wire stripping |
max 7 mm |
Operating temperature |
-40 ÷ +130 °C |
ELECTRICAL CHARACTERISTICS |
Current |
17.5 A |
Voltage |
750 V |
impulse voltage |
3 kV |
MECHANICAL CHARACTERISTICS |
Screw |
M3 |
Recommended torque |
0.5÷0.55 Nm / 4.5÷4.9 in.lbs |
APPROVALS DATA |
|
|
|
|
|
EN 60998-1 |
|
UL 1059 |
Current |
17.5 A |
- |
17.5 A factory / 10 A field |
Voltage |
750 V |
- |
300 V |
Wire section |
1.5 mm² |
- |
16 AWG |
Torque |
0.5 Nm |
- |
4.5 Lb-in |
FILE |
CA02.00598 |
- |
E178356 |
MATERIALS |
Housing |
PA - UL 94 V0 |
Screw |
Galvanized steel |
Clamp | Nickel-plated copper alloy |
Terminal |
Tin-plated copper alloy |
SCIP Number | 2e7d6973-4e16-4203-958f-24d6cd681252 |
COLOURS |
Standard |
On request |
|
|
POLES | NAME | 3D FILE | 2 | MVS172-7,5-H | File not available for this product | 3 | MVS173-7,5-H | File not available for this product | 4 | MVS174-7,5-H | File not available for this product | 5 | MVS175-7,5-H | File not available for this product | 6 | MVS176-7,5-H | File not available for this product | 7 | MVS177-7,5-H | File not available for this product | 8 | MVS178-7,5-H | File not available for this product | 9 | MVS179-7,5-H | File not available for this product | 10 | MVS1710-7,5-H | File not available for this product | 11 | MVS1711-7,5-H | File not available for this product | 12 | MVS1712-7,5-H | File not available for this product |
|

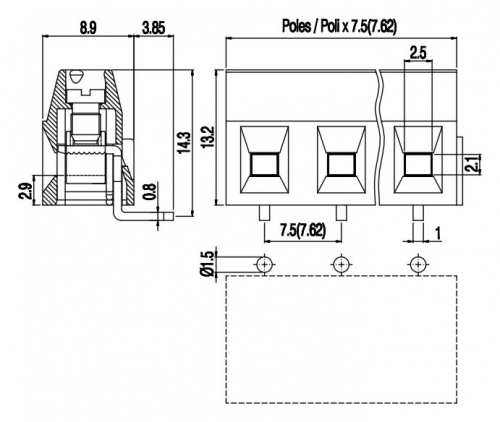

DIMENSIONAL IMAGE | |
|
