| GENERAL INFORMATION |
| pitch |
7,5 mm |
| Height |
17.6 mm |
| Depth |
13.7 mm |
| Dimensional class |
Bassa |
| Wire section |
2x2.5 mm² / 2x14 AWG |
| Clamp opening size |
- |
| Wire stripping |
max 9 mm |
| Operating temperature |
-40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
24 A |
| Voltage |
450 V |
| impulse voltage |
2.5 kV |
| MECHANICAL CHARACTERISTICS |
| Screw |
M3 |
| Recommended torque |
0.5÷0.55 Nm / 4.5÷4.9 in.lbs |
| APPROVALS DATA |
|
 |
 |
|
|
| | UL 1059 |
|
Current |
- |
- |
20 A factory / 15 A field |
| Voltage |
- |
- |
300 V |
| Wire section |
- |
- |
30 AWG |
|
Torque |
- |
- |
4.5 Lb-in |
|
FILE |
- |
- |
E178356 |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
Galvanized steel |
| Clamp | - |
| Terminal |
Tin-plated copper alloy |
| COLOURS |
|
Standard |
On request |
|
|
 |

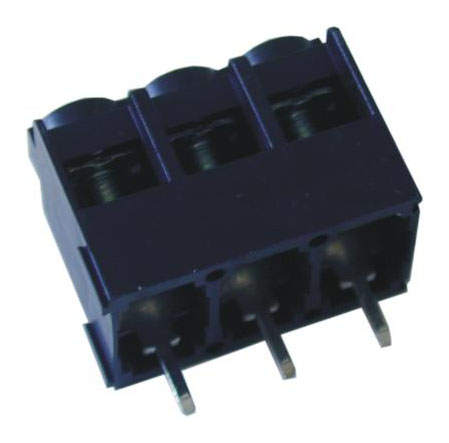

| POLES | NAME | 3D FILE | | 2 | MT172-7,5-YC | File not available for this product | | 3 | MT173-7,5-YC | File not available for this product |
|
| DIMENSIONAL IMAGE |  |
|
