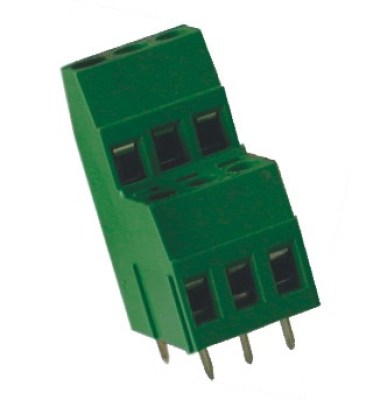

Multi-deck terminal block - Modular version - Piani allineati - Pitch 10,16mm - 1÷2 poles
MVDK25__10_16_V3
GENERAL INFORMATION
pitch 10,16 mm
Height 19.5 mm
Depth 22 mm
Dimensional class Media
Wire section 2.5 mm² / 14 AWG
Clamp opening size 2.8 x 2.8 mm
Wire stripping max 8 mm
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 16 A
Voltage 750 V
impulse voltage 3 kV
MECHANICAL CHARACTERISTICS
Screw M3
Recommended torque 0.5÷0.55 Nm / 4.5÷4.9 in.lbs
APPROVALS DATA
EN 60998-1 EN 60998-1 UL 1059
Current 16 A 16 A 16 A factory / 15 A field
Voltage 750 V 750 V 300 V
Wire section 2.5 mm² 2.5 mm² 14 AWG
Torque 0.5 Nm 0.5 Nm 4.5 Lb-in
FILE EP149 40023956 E178356
MATERIALS
Housing PA - UL 94 V0
Screw Galvanized steel
ClampNickel-plated copper alloy
Terminal Tin-plated copper alloy
SCIP Numberb21a3747-017c-4a33-9185-b68f6cb9586d
COLOURS
Standard On request
POLESNAME3D FILE
1MVDK251-10,16-VFile not available for this product
2MVDK252-10,16-VFile not available for this product
