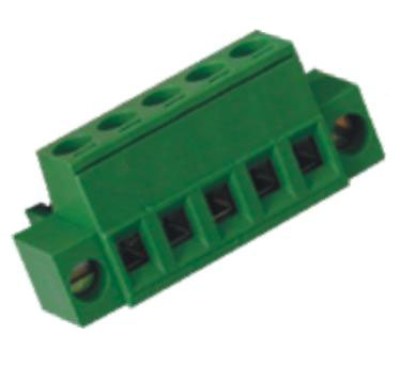

| GENERAL INFORMATION |
| pitch |
5,08 mm |
| Height |
15.5 mm |
| Depth |
18.85 mm |
| Dimensional class |
Media |
| Wire section |
2.5 mm² / 14 AWG |
| Clamp opening size |
2.8 x 3.1 mm |
| Wire stripping |
max 8 mm |
| Operating temperature |
-40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
16 A |
| Voltage |
250 V |
|
Test Voltage |
4 kVrms/60s |
| MECHANICAL CHARACTERISTICS |
| Screw |
M3 |
| Recommended torque |
0.5÷0.55 Nm / 4.5÷4.9 in.lbs |
| APPROVALS DATA |
|
 |
 |
 |
|
EN 61984 |
EN 61984 |
UL 1059 |
| Current |
16 A |
12 A |
12 A factory / 12 A field |
| Voltage |
250 V |
250 V |
300 V |
| Wire section |
2.5 mm² |
2.5 mm² |
14 ÷ 30 AWG |
| Torque |
0.5 Nm |
0.5 Nm |
4.5 Lb-in |
| FILE |
CA02.04178 |
40005779 |
E178356 |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
Galvanized steel |
| Clamp | Nickel-plated copper alloy |
| Terminal |
Copper alloy |
| SCIP Number | 2b16c5e0-b81c-4d1f-839d-5472703af01d |
| COLOURS |
|
Standard |
On request |
 |
 |
| POLES | NAME | 3D FILE | | 02 | SH02-5,08-K | Click here to download the file | | 03 | SH03-5,08-K | Click here to download the file | | 04 | SH04-5,08-K | Click here to download the file | | 05 | SH05-5,08-K | Click here to download the file | | 06 | SH06-5,08-K | Click here to download the file | | 07 | SH07-5,08-K | Click here to download the file | | 08 | SH08-5,08-K | Click here to download the file | | 09 | SH09-5,08-K | Click here to download the file | | 10 | SH10-5,08-K | Click here to download the file | | 11 | SH11-5,08-K | Click here to download the file | | 12 | SH12-5,08-K | Click here to download the file | | 13 | SH13-5,08-K | Click here to download the file | | 14 | SH14-5,08-K | Click here to download the file | | 15 | SH15-5,08-K | Click here to download the file | | 16 | SH16-5,08-K | Click here to download the file | | 17 | SH17-5,08-K | File not available for this product | | 18 | SH18-5,08-K | File not available for this product | | 19 | SH19-5,08-K | File not available for this product | | 20 | SH20-5,08-K | File not available for this product | | 21 | SH21-5,08-K | File not available for this product | | 22 | SH22-5,08-K | File not available for this product |
|

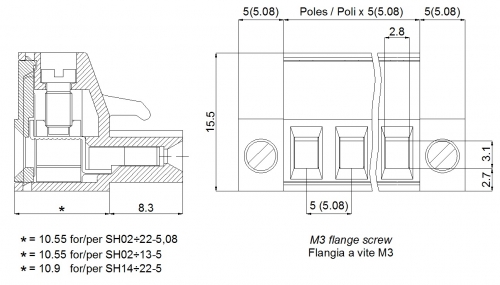

| DIMENSIONAL IMAGE |  |
|
