| GENERAL INFORMATION |
| pitch |
3,5 mm |
| Height |
14.6 mm |
| Depth |
6.85 mm |
| Dimensional class |
Media |
| Wire section |
- |
| Clamp opening size |
- |
| Wire stripping |
- |
| Operating temperature |
-40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
11 A |
| Voltage |
160 V |
| impulse voltage |
2,5 kV |
| MECHANICAL CHARACTERISTICS |
| Screw |
- |
|
- |
| APPROVALS DATA |
|
 |
 |
|
|
| | |
|
Current |
- |
- |
- |
| Voltage |
- |
- |
- |
| Wire section |
- |
- |
- |
|
Torque |
- |
- |
- |
|
FILE |
- |
- |
- |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
- |
| Clamp | - |
| Terminal |
Tin-plated copper alloy |
| COLOURS |
|
Standard |
On request |
 |
 |
| POLES | NAME | 3D FILE | | 02 | PF02-3,5-V | File not available for this product | | 03 | PF03-3,5-V | File not available for this product | | 04 | PF04-3,5-V | File not available for this product | | 05 | PF05-3,5-V | File not available for this product | | 06 | PF06-3,5-V | File not available for this product | | 07 | PF07-3,5-V | File not available for this product | | 08 | PF08-3,5-V | File not available for this product | | 09 | PF09-3,5-V | File not available for this product | | 10 | PF10-3,5-V | File not available for this product | | 11 | PF11-3,5-V | File not available for this product | | 12 | PF12-3,5-V | File not available for this product | | 13 | PF13-3,5-V | File not available for this product | | 14 | PF14-3,5-V | File not available for this product | | 15 | PF15-3,5-V | File not available for this product | | 16 | PF16-3,5-V | File not available for this product | | 17 | PF17-3,5-V | File not available for this product | | 18 | PF18-3,5-V | File not available for this product | | 19 | PF19-3,5-V | File not available for this product | | 20 | PF20-3,5-V | File not available for this product | | 21 | PF21-3,5-V | File not available for this product | | 22 | PF22-3,5-V | File not available for this product | | 23 | PF23-3,5-V | File not available for this product | | 24 | PF24-3,5-V | File not available for this product |
|

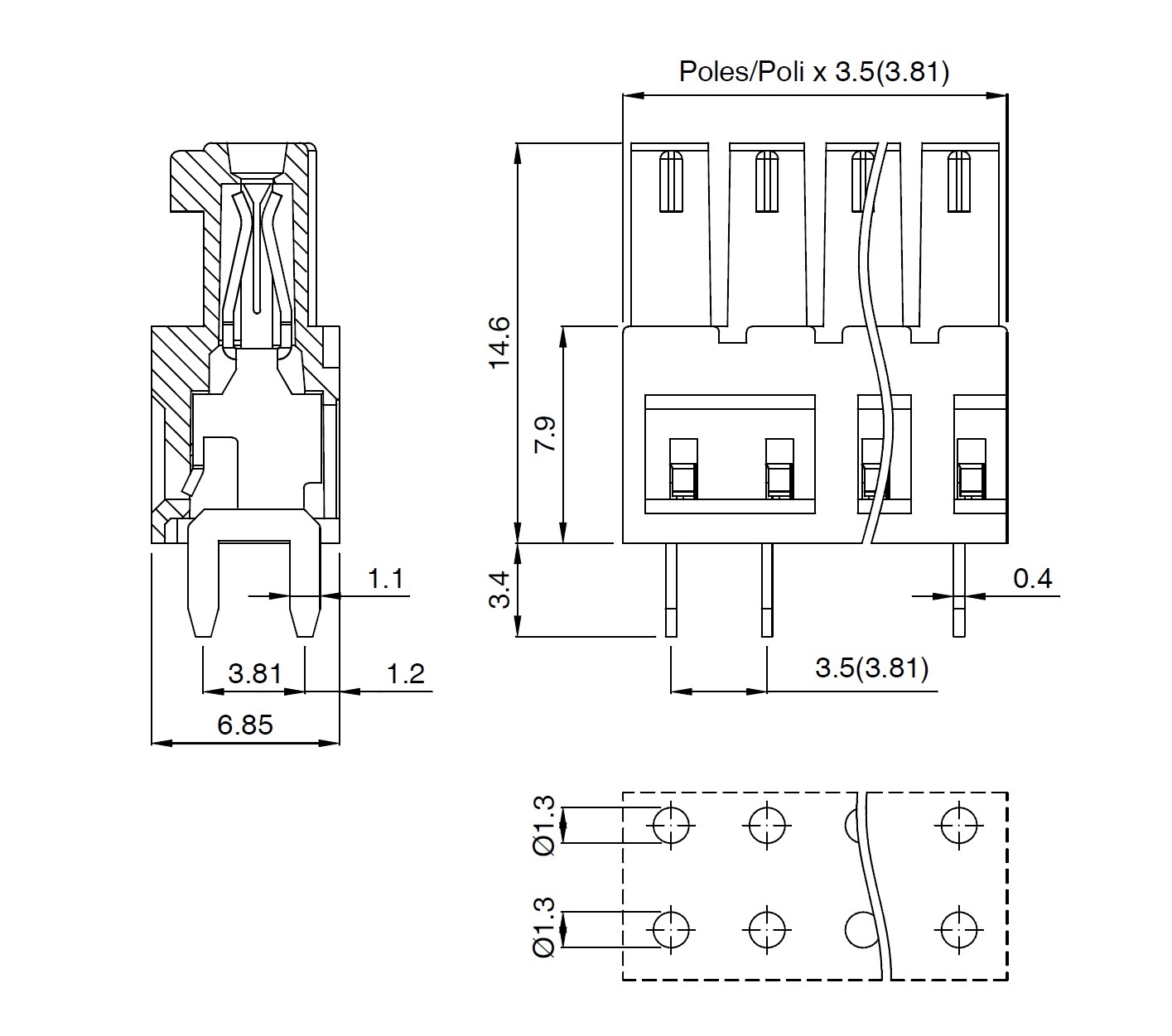

| DIMENSIONAL IMAGE |  |
|
