PV__-3,5-V

PDF
PV__-3,5-V
PV___3_5_V_5bed421d502d37
GENERAL INFORMATION
pitch 3,5 mm
Height 9.2 mm
Depth 7.25 mm
Dimensional class Bassa
Wire section -
Clamp opening size -
Wire stripping -
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 11 A
Voltage 160 V
impulse voltage 2.5 kV
MECHANICAL CHARACTERISTICS
Screw -
Recommended torque -
APPROVALS DATA
EN 61984 UL 1059
Current - 11 A 11 A factory / 11 A field
Voltage - 160 V 300 V
Wire section - - -
Torque - - -
FILE - 40048261 E178356
MATERIALS
Housing PA - UL 94 V0
Screw -
Clamp-
Terminal Tin-plated copper alloy
COLOURS
Standard On request
POLESNAME3D FILE
02PV02-3,5-VClick here to download the file
03PV03-3,5-VClick here to download the file
04PV04-3,5-VClick here to download the file
05PV05-3,5-VClick here to download the file
06PV06-3,5-VClick here to download the file
07PV07-3,5-VClick here to download the file
08PV08-3,5-VClick here to download the file
09PV09-3,5-VClick here to download the file
10PV10-3,5-VClick here to download the file
11PV11-3,5-VClick here to download the file
12PV12-3,5-VClick here to download the file
13PV13-3,5-VClick here to download the file
14PV14-3,5-VClick here to download the file
15PV15-3,5-VClick here to download the file
16PV16-3,5-VClick here to download the file
17PV17-3,5-VClick here to download the file
18PV18-3,5-VClick here to download the file
19PV19-3,5-VClick here to download the file
20PV20-3,5-VClick here to download the file
21PV21-3,5-VClick here to download the file
22PV22-3,5-VClick here to download the file
23PV23-3,5-VClick here to download the file
24PV24-3,5-VClick here to download the file

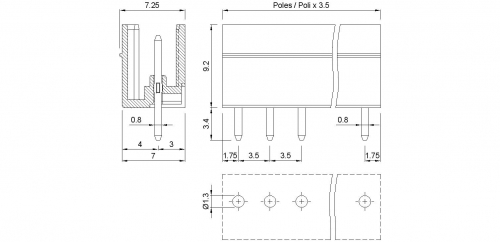

DIMENSIONAL IMAGE
