PV__-5,08-H-K

PDF

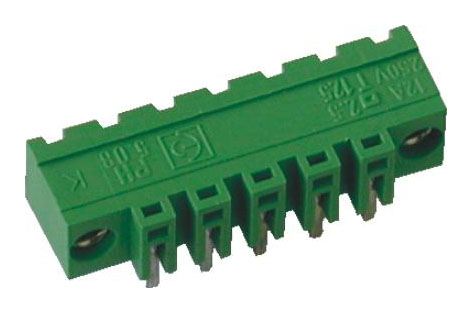

Male plug-in connector - with flange screw - Pitch 5,08mm - 02 ÷ 22 poles
PV___5_08_H_K
GENERAL INFORMATION
pitch 5,08 mm
Height 8.5 mm
Depth 12.2 mm
Dimensional class Media
Wire section -
Clamp opening size -
Wire stripping -
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 16 A
Voltage 250 V
impulse voltage 4 kV
MECHANICAL CHARACTERISTICS
Screw -
Recommended torque -
APPROVALS DATA
EN 61984EN 61984UL 1059
Current 16 A 12 A 16 A factory / 16 A field
Voltage 250 V 250 V 300 V
Wire section - - -
Torque - - -
FILE CA02.04178 40005779 E178356
MATERIALS
Housing PA - UL 94 V0
Screw -
Clamp-
Terminal Tin-plated copper alloy
SCIP Number0086c05b-2b6e-457a-b57e-4d998c8f5f0d
COLOURS
Standard On request
POLESNAME3D FILE
02PV02-5,08-H-KClick here to download the file
03PV03-5,08-H-KClick here to download the file
04PV04-5,08-H-KClick here to download the file
05PV05-5,08-H-KClick here to download the file
06PV06-5,08-H-KClick here to download the file
07PV07-5,08-H-KClick here to download the file
08PV08-5,08-H-KClick here to download the file
09PV09-5,08-H-KClick here to download the file
10PV10-5,08-H-KClick here to download the file
11PV11-5,08-H-KClick here to download the file
12PV12-5,08-H-KClick here to download the file
13PV13-5,08-H-KClick here to download the file
14PV14-5,08-H-KClick here to download the file
15PV15-5,08-H-KClick here to download the file
16PV16-5,08-H-KClick here to download the file
17PV17-5,08-H-KFile not available for this product
18PV18-5,08-H-KFile not available for this product
19PV19-5,08-H-KFile not available for this product
20PV20-5,08-H-KFile not available for this product
21PV21-5,08-H-KFile not available for this product
22PV22-5,08-H-KFile not available for this product

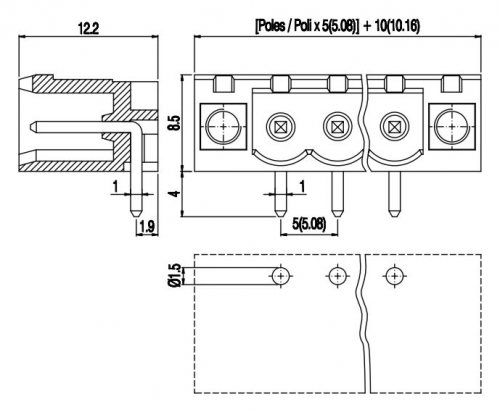

DIMENSIONAL IMAGE
