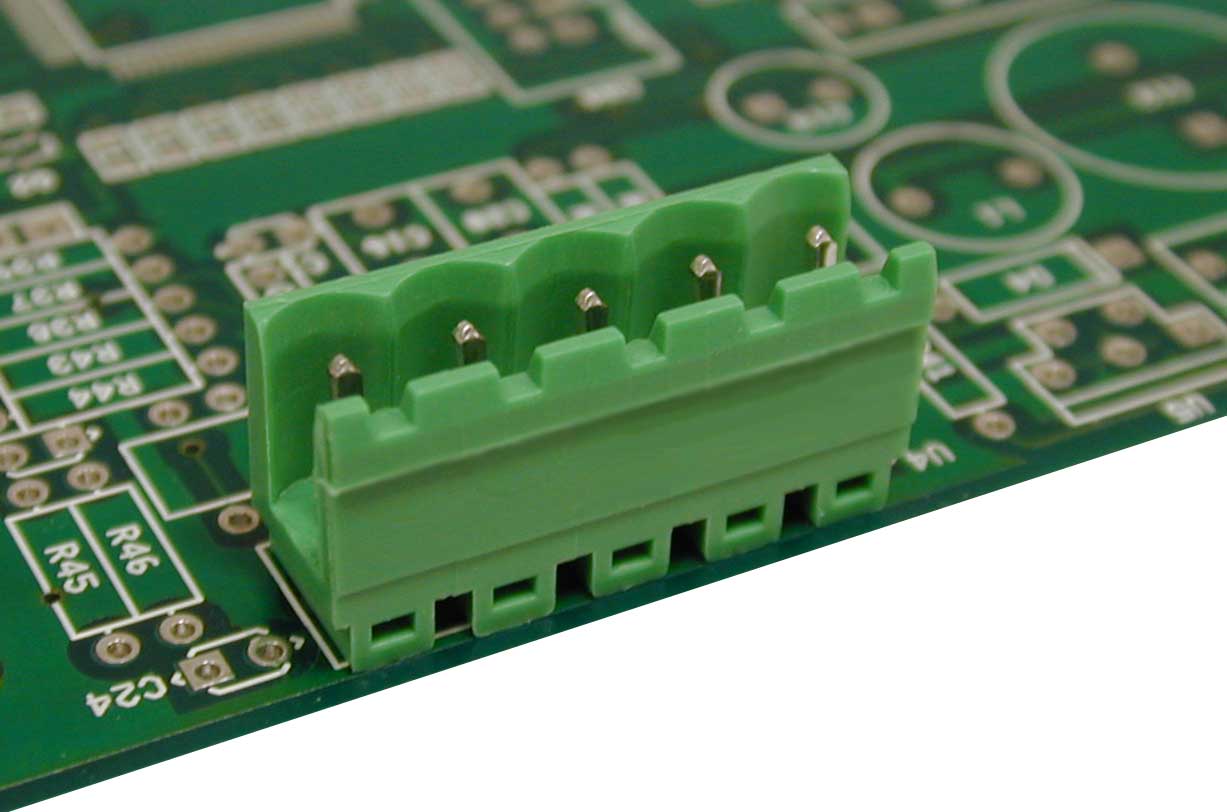

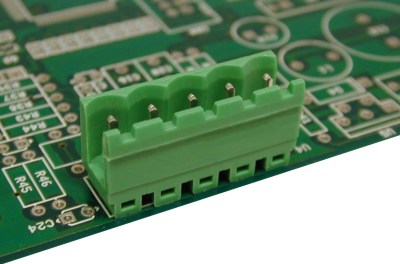

PV__-5,08-V
Male plug-in connector - Side-by-side version - Pitch 5,08mm - 02 ÷ 24 poles
| GENERAL INFORMATION | |||||||
| pitch | 5,08 mm | ||||||
| Height | 12.2 mm | ||||||
| Depth | 8.5 mm | ||||||
| Dimensional class | Media | ||||||
| Wire section | - | ||||||
| Clamp opening size | - | ||||||
| Wire stripping | - | ||||||
| Operating temperature | -40 ÷ +130 °C | ||||||
| ELECTRICAL CHARACTERISTICS | |||||||
| Current | 16 A | ||||||
| Voltage | 250 V | ||||||
| Test Voltage | 4 kVrms/60s | ||||||
| MECHANICAL CHARACTERISTICS | |||||||
| Screw | - | ||||||
| Recommended torque | - | ||||||
| APPROVALS DATA | |||||||
 |
 |
 |
|||||
| EN 61984 | EN 61984 | UL 1059 | |||||
| Current | 16 A | 12 A | 16 A factory / 16 A field | ||||
| Voltage | 250 V | 250 V | 300 V | ||||
| Wire section | - | - | - | ||||
| Torque | - | - | - | ||||
| FILE | CA02.04178 | 40005779 | E178356 | ||||
| MATERIALS | |||||||
| Housing | PA - UL 94 V0 | ||||||
| Screw | - | ||||||
| Clamp | - | ||||||
| Terminal | Tin-plated copper alloy | ||||||
| COLOURS | |||||||
| Standard | On request | ||||||
 |
 |
||||||
| DIMENSIONAL IMAGE | |||||||
 | |||||||
