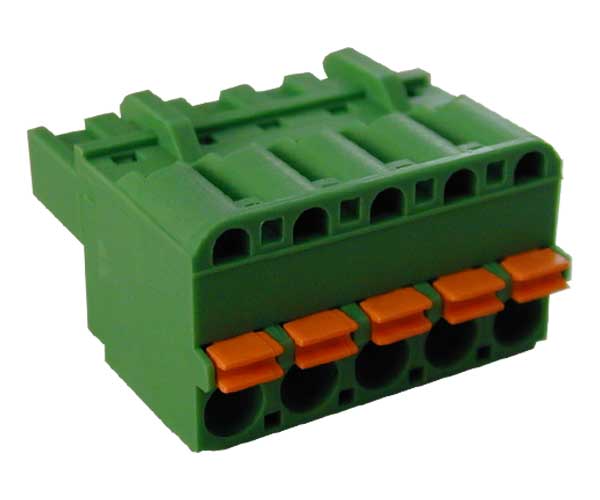

Screwless plug-in connector - Stackable version - Pitch 5,08mm - 02÷24 poles
SHM___5_082
GENERAL INFORMATION
pitch 5,08 mm
Height 15 mm
Depth 23.7 mm
Dimensional class Media
Wire section 2.5 mm² / 14 AWG
Clamp opening size -
Wire stripping max 10 mm
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 12 A
Voltage 250 V
impulse voltage 4 kV
MECHANICAL CHARACTERISTICS
Screw -
Recommended torque -
APPROVALS DATA
UL 1059
Current - - 16 A factory / 16 A field
Voltage - - 300 V
Wire section - - 12 AWG
Torque - - -
FILE - - E178356
MATERIALS
Housing PA - UL 94 V0
Screw -
Clamp-
Terminal Tin-plated copper alloy
COLOURS
Standard On request
POLESNAME3D FILE
02SHM02-5,08Click here to download the file
03SHM03-5,08File not available for this product
04SHM04-5,08Click here to download the file
05SHM05-5,08Click here to download the file
06SHM06-5,08Click here to download the file
07SHM07-5,08File not available for this product
08SHM08-5,08Click here to download the file
09SHM09-5,08Click here to download the file
10SHM10-5,08Click here to download the file
11SHM11-5,08File not available for this product
12SHM12-5,08File not available for this product
13SHM13-5,08File not available for this product
14SHM14-5,08File not available for this product
15SHM15-5,08File not available for this product
16SHM16-5,08File not available for this product
17SHM17-5,08File not available for this product
18SHM18-5,08File not available for this product
19SHM19-5,08File not available for this product
20SHM20-5,08File not available for this product
21SHM21-5,08File not available for this product
22SHM22-5,08File not available for this product
23SHM23-5,08File not available for this product
24SHM24-5,08File not available for this product

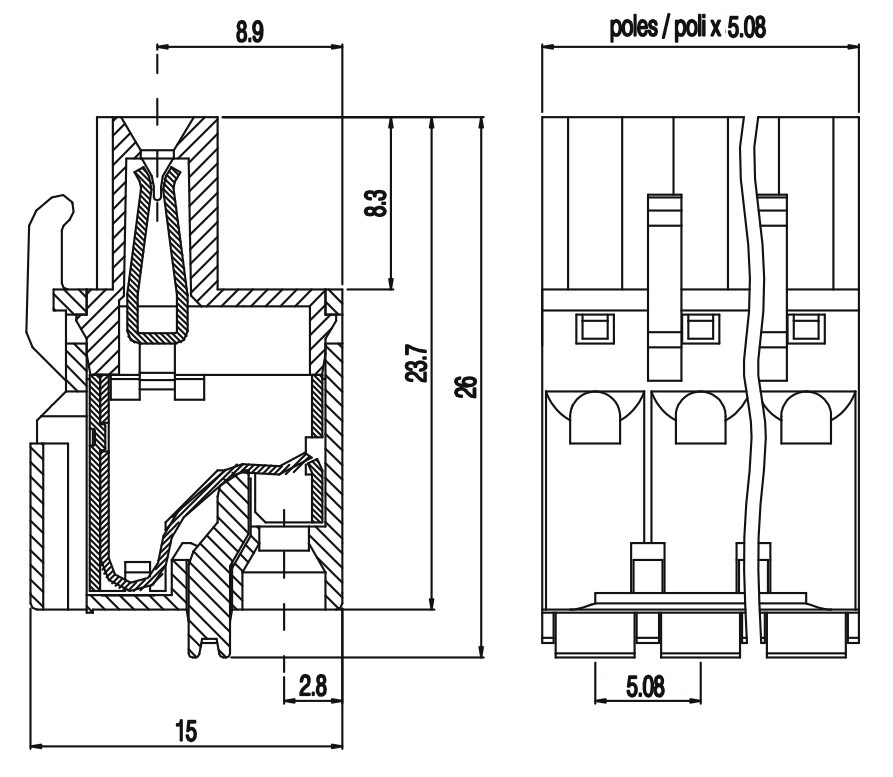

DIMENSIONAL IMAGE
