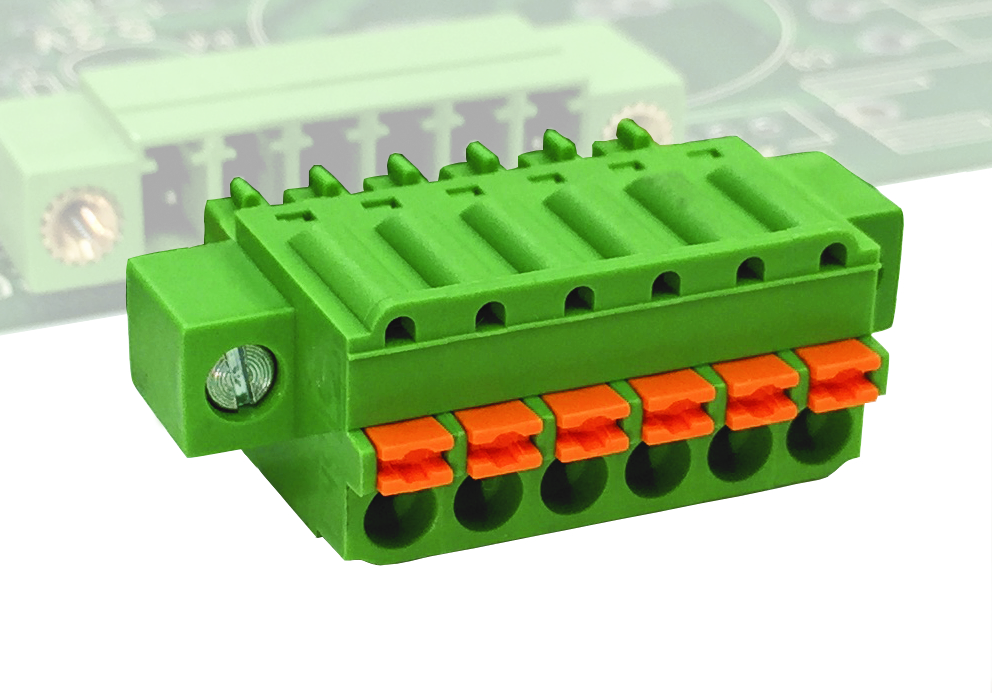

Screwless plug-in connector - w/flange screw - Pitch 3,5mm - 02÷22 poles
SHM_P_K
GENERAL INFORMATION
pitch 3,5 mm
Height 11.7 mm
Depth 21.4 mm
Dimensional class Bassa
Wire section 1.5 mm² / 16 AWG
Clamp opening size -
Wire stripping max 10 mm
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 11 A
Voltage 160 V
impulse voltage 2.5 kV
MECHANICAL CHARACTERISTICS
Screw -
Recommended torque -
APPROVALS DATA
UL 1059
Current - - 11 A factory / 11 A field
Voltage - - 300 V
Wire section - - 14 AWG
Torque - - -
FILE - - E178356
MATERIALS
Housing PA - UL 94 V0
Screw -
Clamp-
Terminal Tin-plated copper alloy
COLOURS
Standard On request
POLESNAME3D FILE
02SHM02-3,5-PKFile not available for this product
03SHM03-3,5-PKFile not available for this product
04SHM04-3,5-PKFile not available for this product
05SHM05-3,5-PKFile not available for this product
06SHM06-3,5-PKFile not available for this product
07SHM07-3,5-PKFile not available for this product
08SHM08-3,5-PKFile not available for this product
09SHM09-3,5-PKFile not available for this product
10SHM10-3,5-PKFile not available for this product
11SHM11-3,5-PKFile not available for this product
12SHM12-3,5-PKFile not available for this product
13SHM13-3,5-PKFile not available for this product
14SHM14-3,5-PKFile not available for this product
15SHM15-3,5-PKFile not available for this product
16SHM16-3,5-PKFile not available for this product
17SHM17-3,5-PKFile not available for this product
18SHM18-3,5-PKFile not available for this product
19SHM19-3,5-PKFile not available for this product
20SHM20-3,5-PKFile not available for this product
21SHM21-3,5-PKFile not available for this product
22SHM22-3,5-PKFile not available for this product

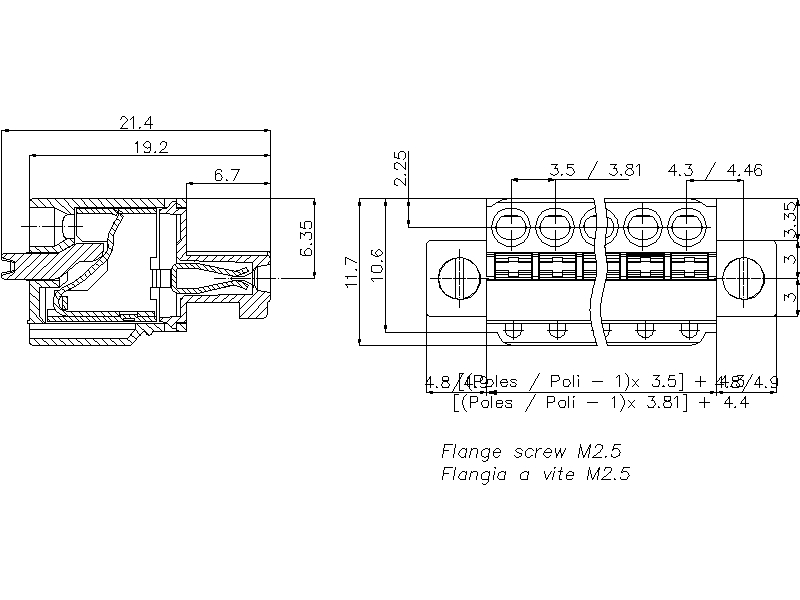

DIMENSIONAL IMAGE
