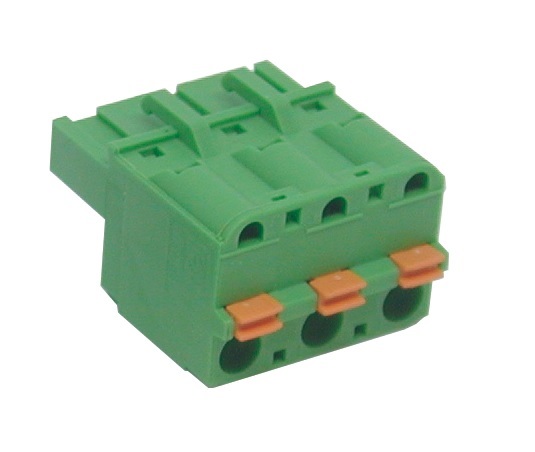

| GENERAL INFORMATION |
| pitch |
7,62 mm |
| Height |
15 mm |
| Depth |
23.7 mm |
| Dimensional class |
Media |
| Wire section |
2.5 mm² / 14 AWG |
| Clamp opening size |
- |
| Wire stripping |
max 10 mm |
| Operating temperature |
-40 ÷ +105 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
15 A |
| Voltage |
500 V |
| impulse voltage |
6 kV |
| MECHANICAL CHARACTERISTICS |
| Screw |
- |
| Recommended torque |
- |
| APPROVALS DATA |
|
 |
 |
|
|
| | UL 1059 |
|
Current |
- |
- |
11 A factory / 11 A field |
| Voltage |
- |
- |
300V (B,D) V |
| Wire section |
- |
- |
14 AWG |
|
Torque |
- |
- |
- |
|
FILE |
- |
- |
E178356 |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
- |
| Clamp | - |
| Terminal |
Tin-plated copper alloy |
| COLOURS |
|
Standard |
On request |
 |
 |
| POLES | NAME | 3D FILE | | 02 | SHM02-7,62 | File not available for this product | | 03 | SHM03-7,62 | File not available for this product | | 04 | SHM04-7,62 | File not available for this product | | 05 | SHM05-7,62 | File not available for this product | | 06 | SHM06-7,62 | File not available for this product | | 07 | SHM07-7,62 | File not available for this product | | 08 | SHM08-7,62 | File not available for this product | | 09 | SHM09-7,62 | File not available for this product | | 10 | SHM10-7,62 | File not available for this product | | 11 | SHM11-7,62 | File not available for this product | | 12 | SHM12-7,62 | File not available for this product |
|
| DIMENSIONAL IMAGE |  |
|
