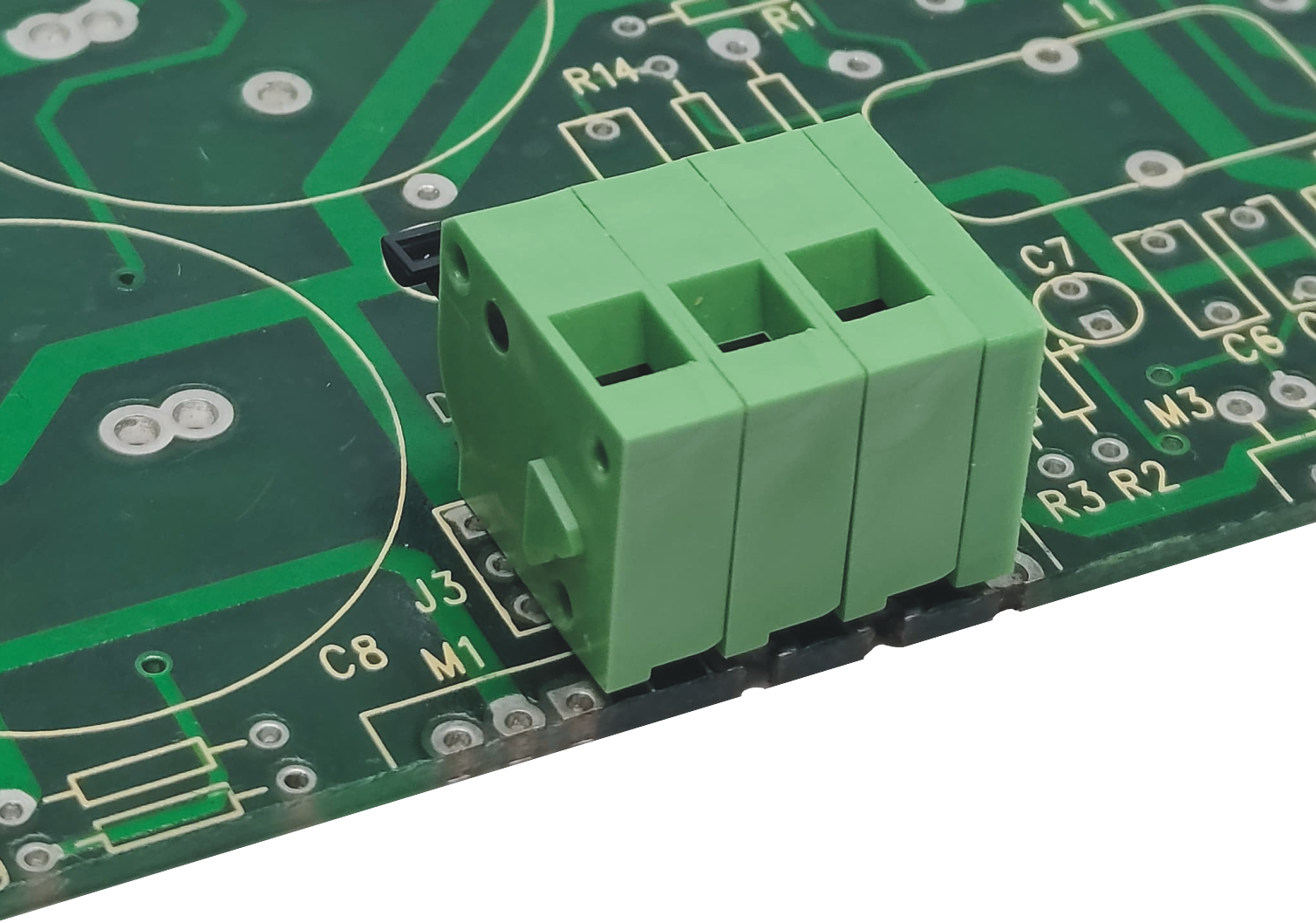

Screwless terminal block - Vertical - with button - Modular version - Pitch 5,08mm
MG1__-5,08-V-P8
GENERAL INFORMATION
pitch 5,08 mm
Height 13.2 mm
Depth 15.4 mm
Dimensional class Bassa
Wire section 2.5 mm² / 14 AWG
Clamp opening size 2.45 x 2.45 mm
Wire stripping max 9 mm
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 24 A
Voltage 450 V
impulse voltage 2 kV
MECHANICAL CHARACTERISTICS
Screw -
Recommended torque -
APPROVALS DATA
UL 1059
Current - - 17 A factory / 17 A field
Voltage - - 300 V
Wire section - - 12 AWG
Torque - - -
FILE - - E178356
MATERIALS
Housing PA - UL 94 V0
Screw Galvanized steel
ClampNickel-plated copper alloy
Terminal Tin-plated copper alloy
COLOURS
Standard On request
POLESNAME3D FILE
01MG101-5,08-V-PFile not available for this product
02MG102-5,08-V-PFile not available for this product
03MG103-5,08-V-PFile not available for this product
04MG104-5,08-V-PFile not available for this product
05MG105-5,08-V-PFile not available for this product
06MG106-5,08-V-PFile not available for this product
07MG107-5,08-V-PFile not available for this product
08MG108-5,08-V-PFile not available for this product
09MG109-5,08-V-PFile not available for this product
10MG110-5,08-V-PFile not available for this product
11MG111-5,08-V-PFile not available for this product
12MG112-5,08-V-PFile not available for this product
13MG113-5,08-V-PFile not available for this product
14MG114-5,08-V-PFile not available for this product
15MG115-5,08-V-PFile not available for this product
16MG116-5,08-V-PFile not available for this product
17MG117-5,08-V-PFile not available for this product
18MG118-5,08-V-PFile not available for this product
19MG119-5,08-V-PFile not available for this product
20MG120-5,08-V-PFile not available for this product
21MG121-5,08-V-PFile not available for this product
22MG122-5,08-V-PFile not available for this product
23MG123-5,08-V-PFile not available for this product

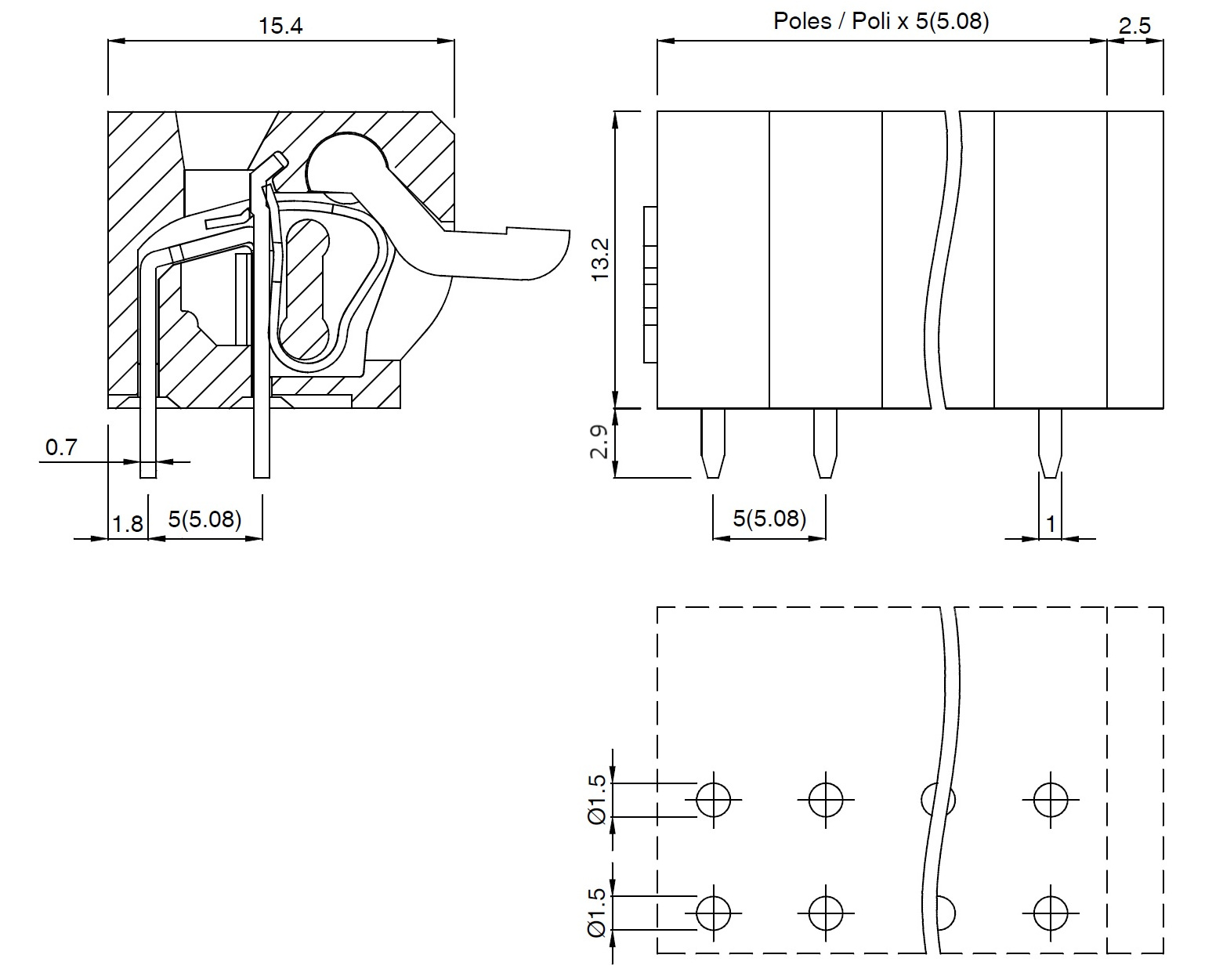

DIMENSIONAL IMAGE
