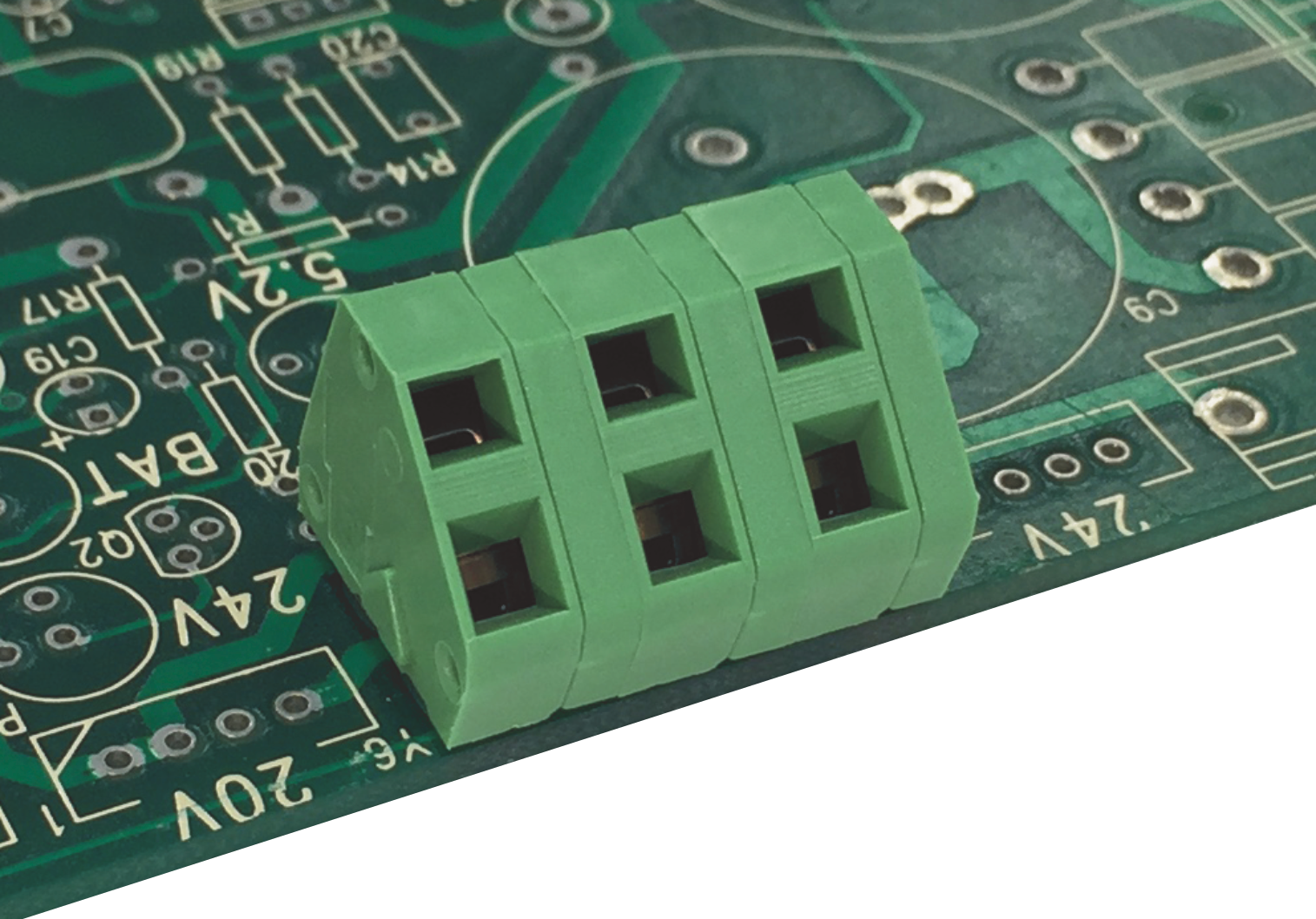

Screwless terminal block - 45° angled - Modular version - Pitch 7,5mm
MG1__-7,5
GENERAL INFORMATION
pitch 7,5 mm
Height 14.3 mm
Depth 16.75 mm
Dimensional class Bassa
Wire section 2.5 mm² / 14 AWG
Clamp opening size 2.45 x 2.45 mm
Wire stripping max 9 mm
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 24 A
Voltage 450 V
impulse voltage 2 kV
MECHANICAL CHARACTERISTICS
Screw -
Recommended torque -
APPROVALS DATA
UL 1059
Current - - 17 A factory / 17 A field
Voltage - - 300 V
Wire section - - 12 AWG
Torque - - -
FILE - - E178356
MATERIALS
Housing PA - UL 94 V0
Screw -
SpringSpring steel
Terminal Tin-plated copper alloy
COLOURS
Standard On request
POLESNAME3D FILE
02MG102-7,5File not available for this product
03MG103-7,5File not available for this product
04MG104-7,5File not available for this product
05MG105-7,5File not available for this product
06MG106-7,5File not available for this product
07MG107-7,5File not available for this product
08MG108-7,5File not available for this product
09MG109-7,5File not available for this product
10MG110-7,5File not available for this product
11MG111-7,5File not available for this product
12MG112-7,5File not available for this product
13MG113-7,5File not available for this product
14MG114-7,5File not available for this product
15MG115-7,5File not available for this product
16MG116-7,5File not available for this product
17MG117-7,5File not available for this product
18MG118-7,5File not available for this product
19MG119-7,5File not available for this product
20MG120-7,5File not available for this product
21MG121-7,5File not available for this product
22MG122-7,5File not available for this product
23MG123-7,5File not available for this product
24MG124-7,5File not available for this product
DIMENSIONAL IMAGE
