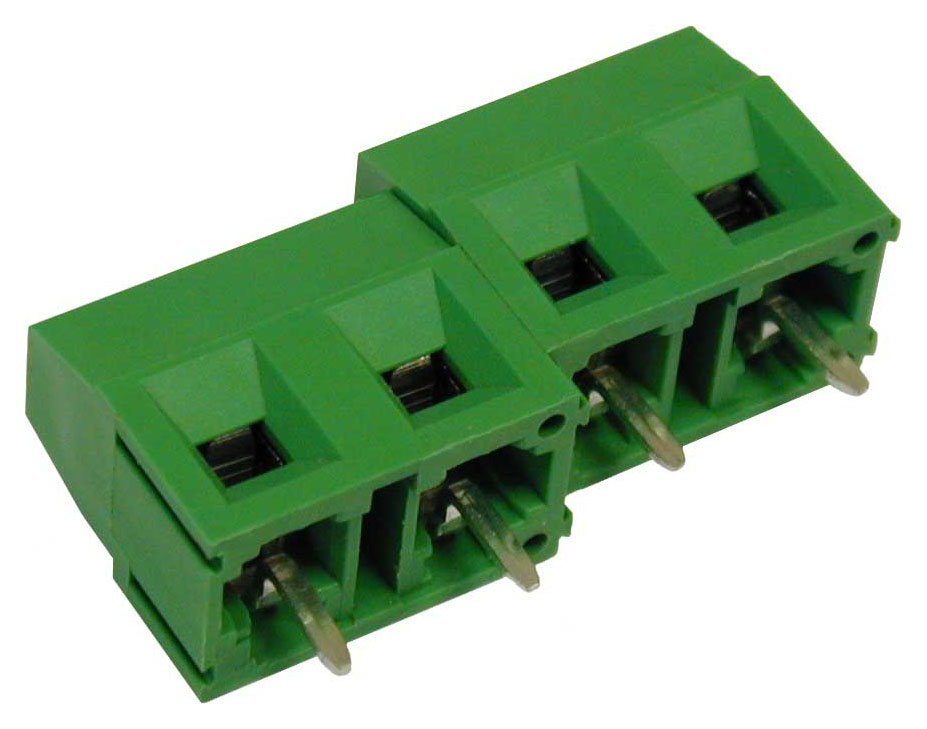

Single-deck terminal block - Modular version - Pitch 7,5mm - 2÷12 poles
MVS17__7_5_V
GENERAL INFORMATION
pitch 7,5 mm
Height 13.2 mm
Depth 8.9 mm
Dimensional class Bassa
Wire section 1.5 mm² / 16 AWG
Clamp opening size 2.5 x 2.1 mm
Wire stripping max 7 mm
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 17.5 A
Voltage 750 V
impulse voltage 3 kV
MECHANICAL CHARACTERISTICS
Screw M3
Recommended torque 0.5÷0.55 Nm / 4.5÷4.9 in.lbs
APPROVALS DATA
EN 60998-1 UL 1059
Current 17.5 A - 17.5 A factory / 10 A field
Voltage 750 V - 300 V
Wire section 1.5 mm² - 16 AWG
Torque 0.5 Nm - 4.5 Lb-in
FILE CA02.00598 - E178356
MATERIALS
Housing PA - UL 94 V0
Screw Galvanized steel
ClampNickel-plated copper alloy
Terminal Tin-plated copper alloy
SCIP Number2e7d6973-4e16-4203-958f-24d6cd681252
COLOURS
Standard On request
POLESNAME3D FILE
2MVS172-7,5-VClick here to download the file
3MVS173-7,5-VClick here to download the file
4MVS174-7,5-VFile not available for this product
5MVS175-7,5-VFile not available for this product
6MVS176-7,5-VFile not available for this product
7MVS177-7,5-VFile not available for this product
8MVS178-7,5-VFile not available for this product
9MVS179-7,5-VFile not available for this product
10MVS1710-7,5-VFile not available for this product
11MVS1711-7,5-VFile not available for this product
12MVS1712-7,5-VFile not available for this product

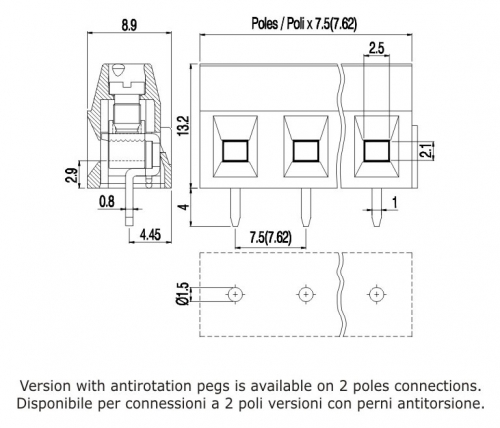

DIMENSIONAL IMAGE
