MBE15_-5-V-TH-BK

PDF

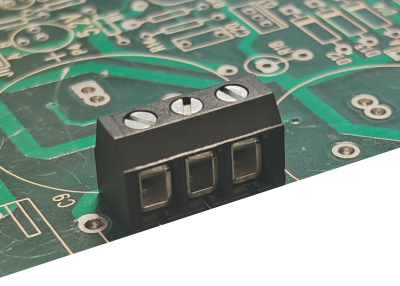

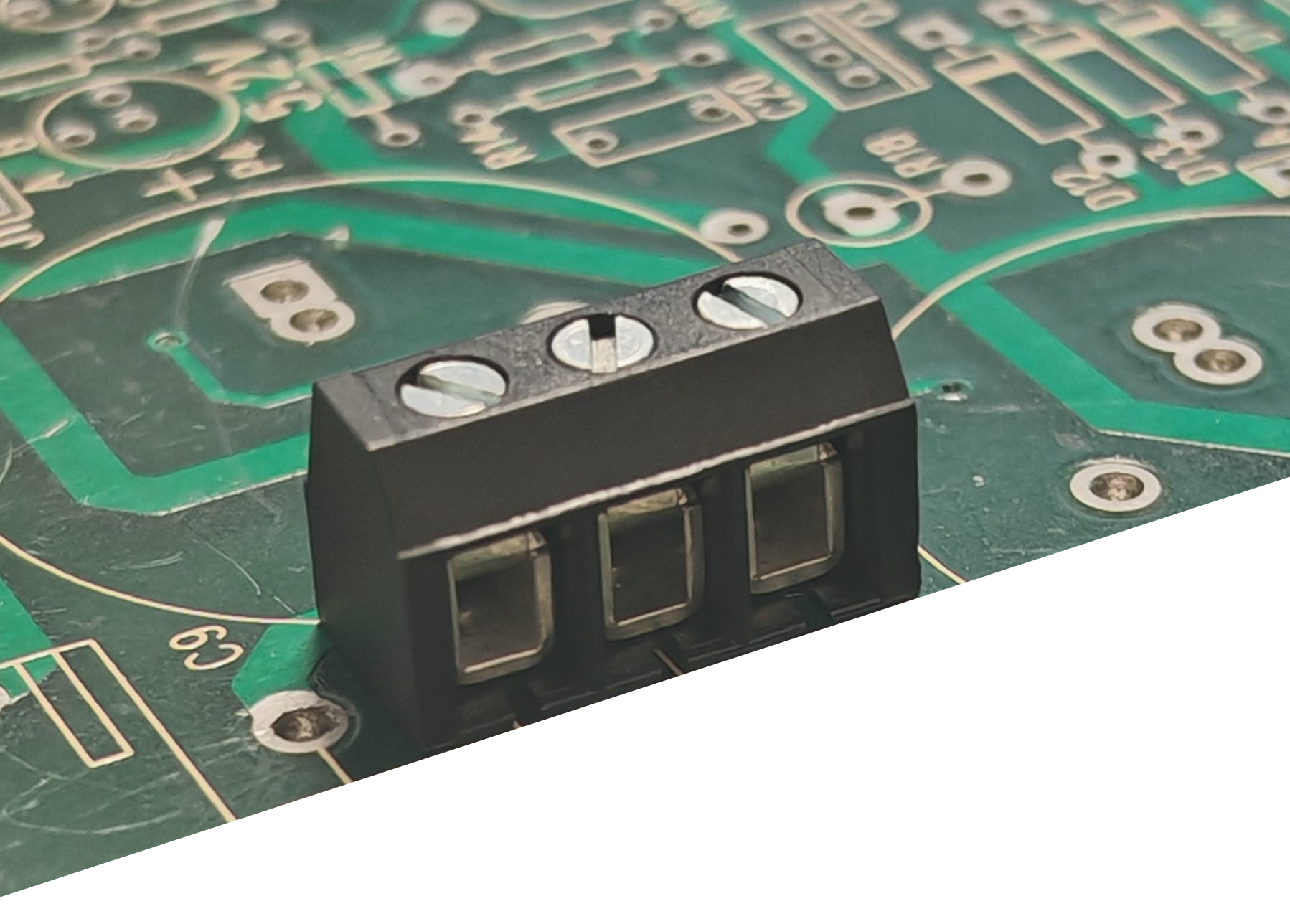

Single-deck terminal block - Through hole reflow - Pitch 5mm - 2÷12 poles
MBE15_5-V-TH-BK
GENERAL INFORMATION
pitch 5 mm
Height 10.2 mm
Depth 8.6 mm
Dimensional class Bassa
Wire section 2.5 mm² / 14 AWG
Clamp opening size -
Wire stripping max 8 mm
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 24 A
Voltage 450 V
Test Voltage 2.5 kVrms/60s
MECHANICAL CHARACTERISTICS
Screw M2.5
Recommended torque 0.4÷0.44 Nm / 3.6÷4 in.lbs
APPROVALS DATA
EN 60998-1 UL 1059
Current - 24 A 20 A factory / 15 A field
Voltage - 450 V 300 V
Wire section - 2.5 mm² 14 ÷ 30 AWG
Torque - 0.4 Nm 3.6 Lb-in
FILE - 40019705 E178356
MATERIALS
Housing PA GF30% - UL 94 V0
Screw Galvanized steel
ClampTin-plated copper alloy
Terminal Tin-plated copper alloy
SCIP Numberf96aa5fb-ce76-4818-a732-b41ce6983956
COLOURS
Standard On request
POLESNAME3D FILE
2MBE152-5-V-TH-BKClick here to download the file
3MBE153-5-V-TH-BKClick here to download the file
4MBE154-5-V-TH-BKClick here to download the file
5MBE155-5-V-TH-BKClick here to download the file
6MBE156-5-V-TH-BKClick here to download the file
7MBE157-5-V-TH-BKClick here to download the file
8MBE158-5-V-TH-BKClick here to download the file
9MBE159-5-V-TH-BKFile not available for this product
10MBE1510-5-V-TH-BKFile not available for this product
11MBE1511-5-V-TH-BKFile not available for this product
12MBE1512-5-V-TH-BKFile not available for this product

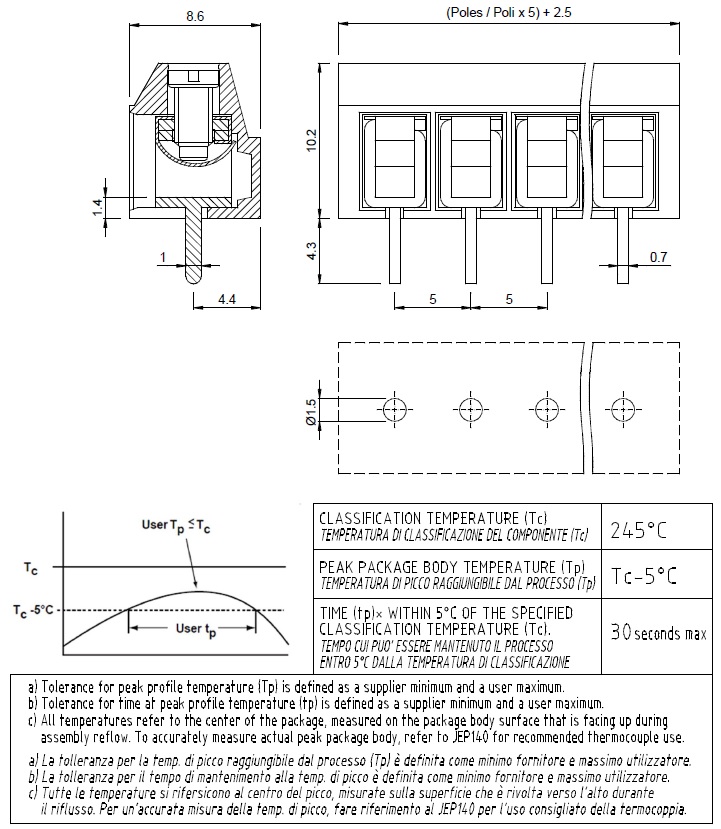

DIMENSIONAL IMAGE
