SH06-3,5-MO2243-GY
Female plug-in connector - Stackable version - Pitch 3,5mm - 06 poles - GREY colour connector - Pad printing colour BLACK
| GENERAL INFORMATION | |
|---|---|
| Pitch | 3,5 mm |
| Height | 11.1 mm |
| Depth | 15.5 mm |
| Dimensional class | Media |
| Wire section | 2.5 mm² / 14 AWG |
| Clamp opening size | - |
| Wire stripping | max 8 mm |
| Operating temperature | -40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Current | 11 A |
| Voltage | 160 V |
| Impulse voltage | 2.5 kVrms/60s |
| MECHANICAL CHARACTERISTICS | |
|---|---|
| Screw Type | M2 - Captive |
| Recommended torque | 0.25÷0.27 Nm / 2.3÷2.5 Lb-in |
| APPROVALS DATA | |||
|---|---|---|---|
 |  |  | |
| Current | - | 11 (2/3 poles) 9 (4÷24 poles) A | 11 A factory / 11 A field |
| Voltage | - | 160 V | 300 V |
| Wire section | - | 2.5 mm² | 30 ÷ 14 AWG |
| Torque | - | 0.25 Nm | 2.3 Lb-in |
| FILE | - | 40048261 | E178356 |
| MATERIALS | |
|---|---|
| Housing | PA - UL 94 V0 |
| Screw | Galvanized steel |
| Clamp | Nickel-plated copper alloy |
| Terminal | Copper alloy |
| Scip Number | bfb0c281-a82f-4739-a58f-ccd9c58cc7dd |
| COLOURS | |
|---|---|
| Standard | On request |
 | |
| POLES | NAME | 3DFILE |
|---|---|---|
| 06 | SH06-3,5-MO2243-GY | N/A |

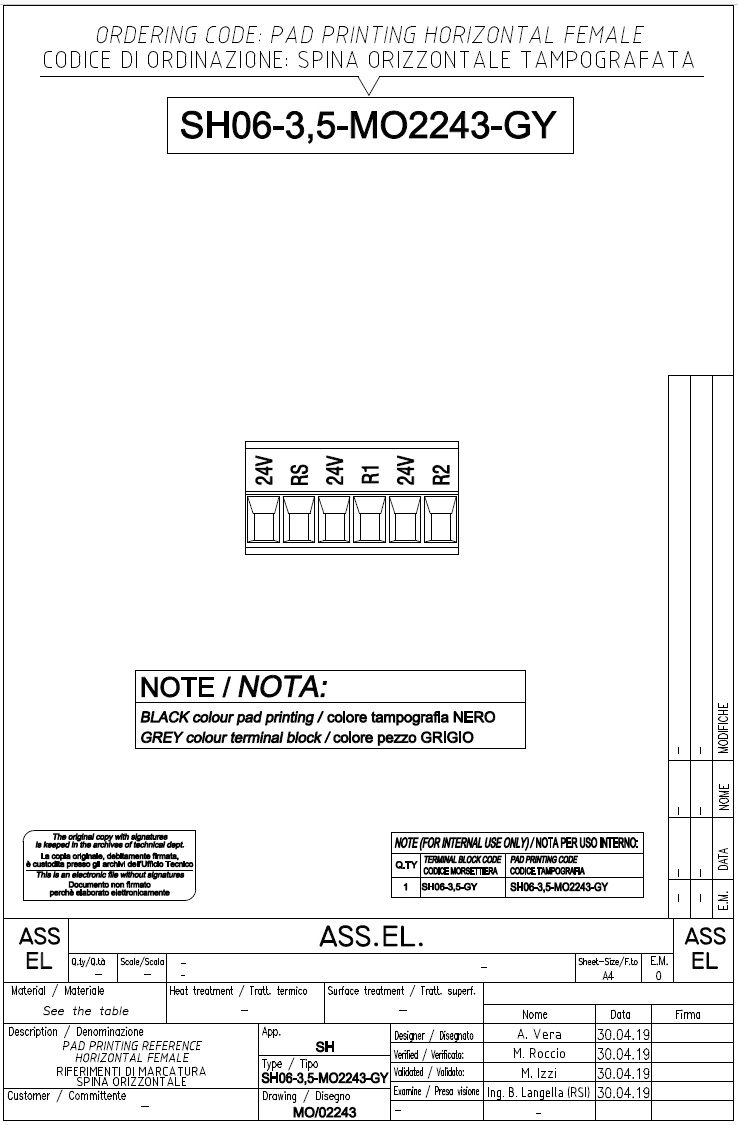

DIMENSIONAL IMAGE
