MV25_-5,08-V-C
Single deck terminal block - Modular version - Pitch 5,08mm - 02÷12 poles - Version with short pin
| GENERAL INFORMATION | |
|---|---|
| Pitch | 5,08 mm |
| Height | 16 mm |
| Depth | 11 mm |
| Dimensional class | Media |
| Wire section | 2.5 mm² / 14 AWG |
| Clamp opening size | - |
| Wire stripping | max 8 mm |
| Operating temperature | -40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Current | 16 A |
| Voltage | 450 V |
| Impulse voltage | 2.5 kVrms/60s |
| Test voltage | - |
| MECHANICAL CHARACTERISTICS | |
|---|---|
| Screw Type | M3 - Captive |
| Recommended torque | 0.5÷0.55 Nm / 4.5÷4.9 Lb-in |
| APPROVALS DATA | |||
|---|---|---|---|
| Current | - | - | - |
| Voltage | - | - | - |
| Wire section | - | - | - |
| Torque | - | - | - |
| FILE | - | - | - |
| MATERIALS | |
|---|---|
| Housing | PA - UL 94 V0 |
| Screw | Galvanized steel |
| Clamp | Nickel-plated copper alloy |
| Terminal | Tin-plated copper alloy |
| Scip Number | 0ab5c29e-2c2a-42d2-bc27-7c61f6570969 |
| COLOURS | |
|---|---|
| Standard | On request |
 |      |
| POLES | NAME | 3DFILE |
|---|---|---|
| 2 | MV252-5,08-V-C | Click here to download the file |
| 3 | MV253-5,08-V-C | Click here to download the file |
| 4 | MV254-5,08-V-C | Click here to download the file |
| 5 | MV255-5,08-V-C | Click here to download the file |
| 6 | MV256-5,08-V-C | Click here to download the file |
| 7 | MV257-5,08-V-C | Click here to download the file |
| 8 | MV258-5,08-V-C | Click here to download the file |
| 9 | MV259-5,08-V-C | Click here to download the file |
| 10 | MV2510-5,08-V-C | Click here to download the file |
| 11 | MV2511-5,08-V-C | Click here to download the file |
| 12 | MV2512-5,08-V-C | Click here to download the file |

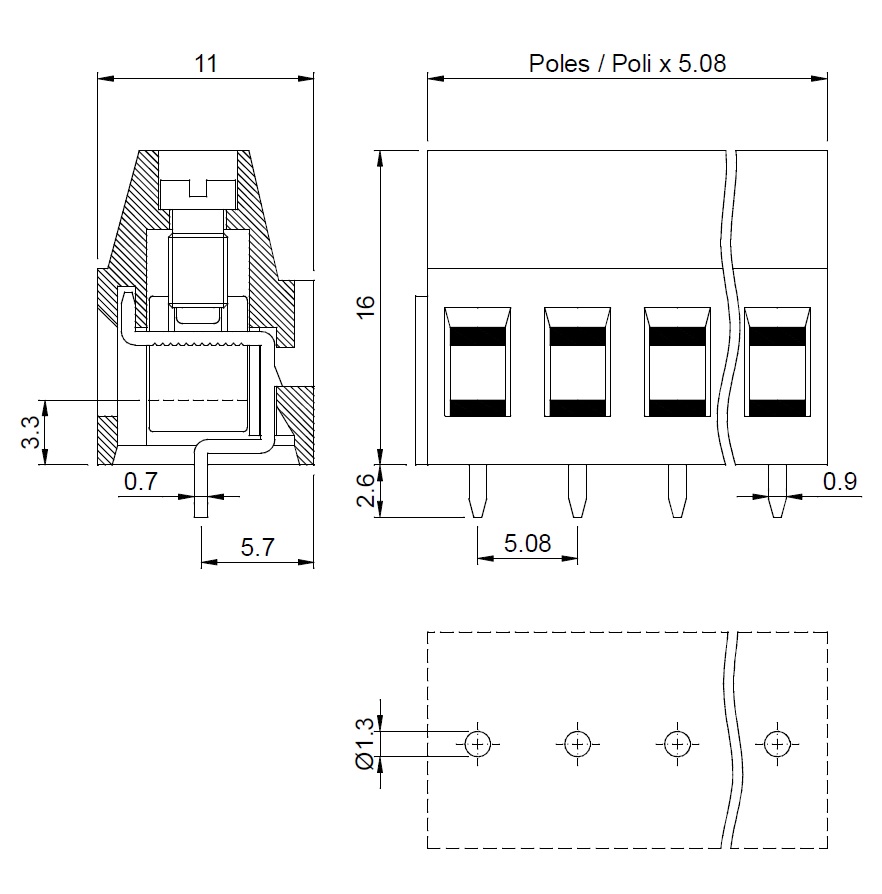

DIMENSIONAL IMAGE
