MP6__-10-H

Screwless Horizontal terminal block - Pitch 10mm

ELECTRICAL CHARACTERISTICS
Current	41 A
Voltage	1000 V
Impulse voltage	-

MECHANICAL CHARACTERISTICS
Screw Type	n/a
Recommended torque	-

COLOURS
Standard	On request

POLES	NAME	3DFILE
01	MP601-10-H	N/A
02	MP602-10-H	Click here to download the file
03	MP603-10-H	Click here to download the file
04	MP604-10-H	N/A
05	MP605-10-H	N/A
06	MP606-10-H	N/A
07	MP607-10-H	N/A
08	MP608-10-H	N/A
09	MP609-10-H	N/A
10	MP610-10-H	N/A
11	MP611-10-H	N/A
12	MP612-10-H	N/A
13	MP613-10-H	N/A
14	MP614-10-H	N/A
16	MP616-10-H	N/A
17	MP617-10-H	N/A
18	MP618-10-H	N/A
19	MP619-10-H	N/A
20	MP620-10-H	N/A
21	MP621-10-H	N/A
22	MP622-10-H	N/A

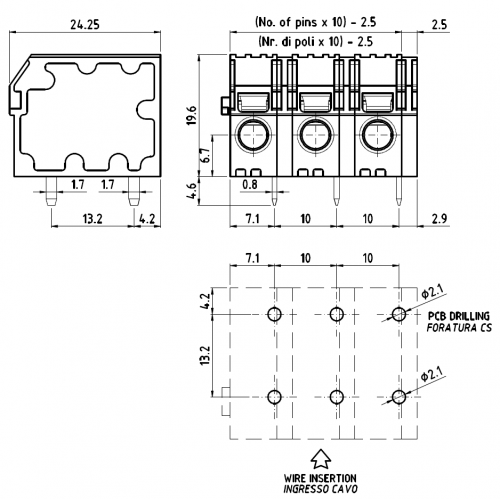

DIMENSIONAL IMAGE
