GENERAL INFORMATION

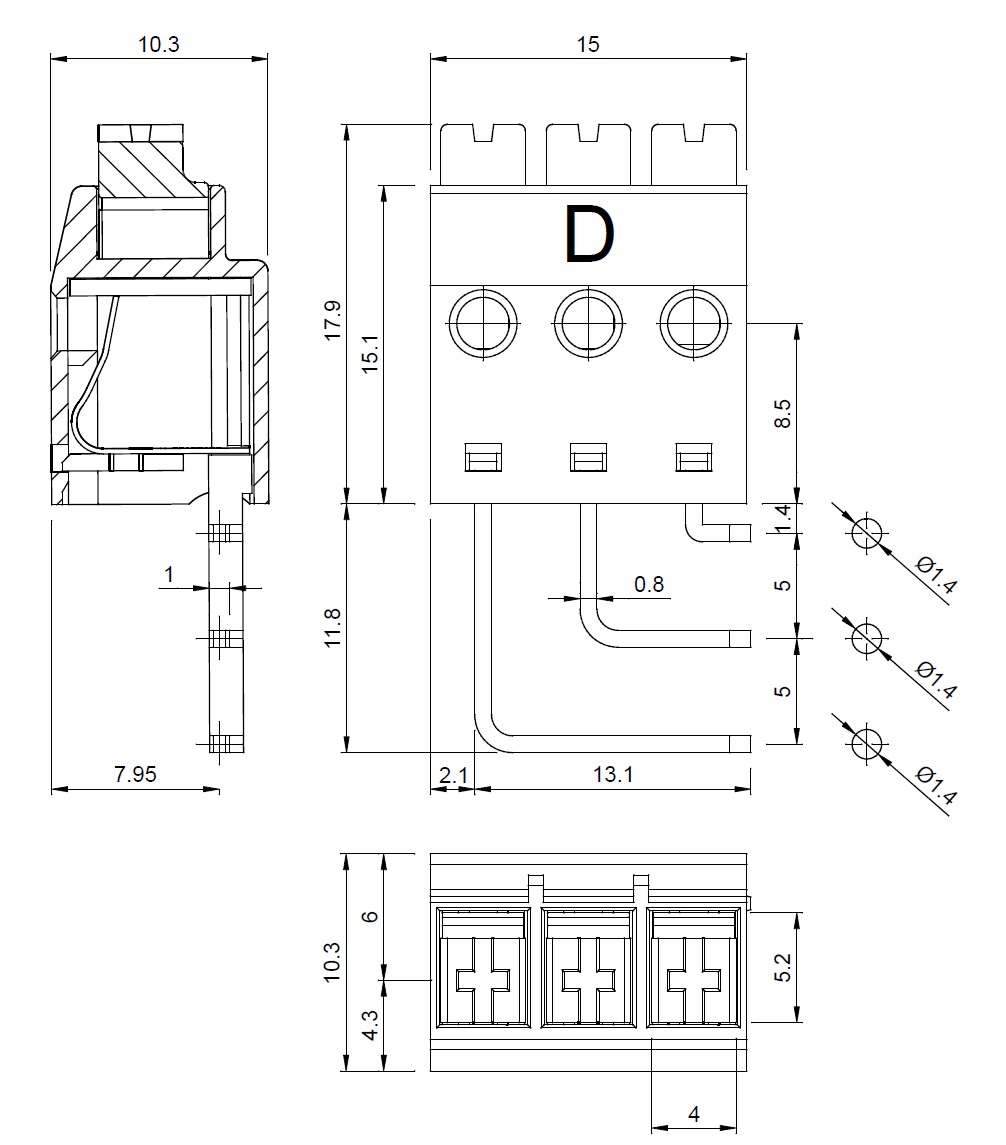

Pitch	5 mm
Height	15.1 mm
Depth	10.3 mm
Dimensional class	Media
Wire section	2.5 mm² / 14 AWG
Clamp opening size	-
Wire stripping	max 9,5 mm
Operating temperature	-40 ÷ +130 °C

ELECTRICAL CHARACTERISTICS
Current	16 A
Voltage	450 V
Impulse voltage	2.5 kVrms/60s

MECHANICAL CHARACTERISTICS
Screw Type	n/a
Recommended torque	-

APPROVALS DATA
Current	-	-	-
Voltage	-	-	-
Wire section	-	-	-
Torque	-	-	-
FILE	-	-	-

MATERIALS
Housing	PA - UL 94 V0
Screw	-
Clamp	-
Terminal	Tin-plated copper alloy
Scip Number	-

COLOURS
Standard	On request
