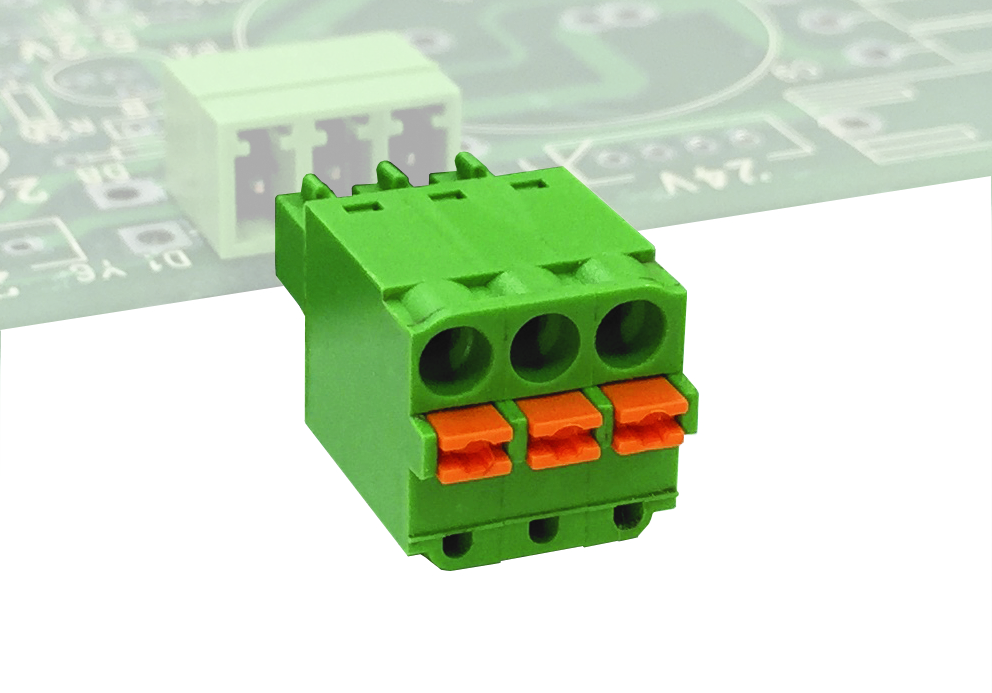

Screwless plug-in connector -In Line Stackable version - Pitch 3,81mm - 02÷24 poles
SHM_F
GENERAL INFORMATION
pitch 3,81 mm
Height 11.7 mm
Depth 21.4 mm
Dimensional class Bassa
Wire section 1,5 mm² / 16 AWG
Clamp opening size -
Wire stripping max 10 mm
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 11 A
Voltage 160 V
impulse voltage 2,5 kV
MECHANICAL CHARACTERISTICS
Screw -
Recommended torque -
APPROVALS DATA
UL 1059
Current - - 11 A factory / 11 A field
Voltage - - 300 V
Wire section - - 14 AWG
Torque - - -
FILE - - E178356
MATERIALS
Housing PA - UL 94 V0
Screw -
Clamp-
Terminal Tin-plated copper alloy
COLOURS
Standard On request
POLESNAME3D FILE
