| GENERAL INFORMATION |
| pitch |
3,81 mm |
| Height |
11.7 mm |
| Depth |
21.4 mm |
| Dimensional class |
Bassa |
| Wire section |
1,5 mm² / 16 AWG |
| Clamp opening size |
- |
| Wire stripping |
max 10 mm |
| Operating temperature |
-40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
11 A |
| Voltage |
160 V |
| impulse voltage |
2,5 kV |
| MECHANICAL CHARACTERISTICS |
| Screw |
- |
| Recommended torque |
- |
| APPROVALS DATA |
|
 |
 |
|
|
| | UL 1059 |
|
Current |
- |
- |
11 A factory / 11 A field |
| Voltage |
- |
- |
300 V |
| Wire section |
- |
- |
14 AWG |
|
Torque |
- |
- |
- |
|
FILE |
- |
- |
E178356 |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
- |
| Clamp | - |
| Terminal |
Tin-plated copper alloy |
| COLOURS |
|
Standard |
On request |
 |
 |

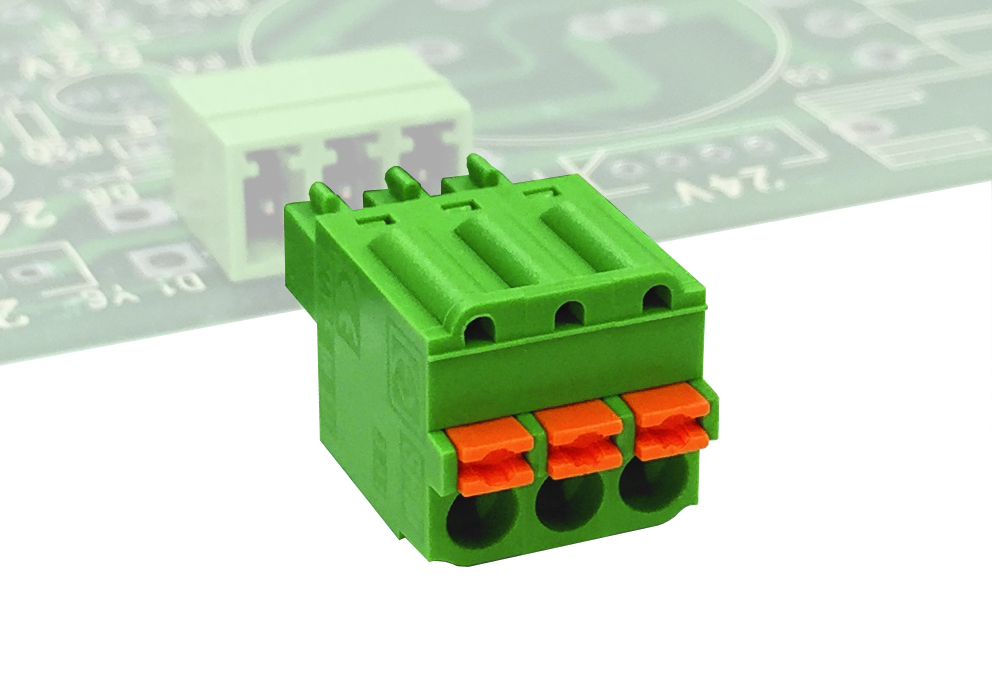

| POLES | NAME | 3D FILE | | 02 | SHM02-3,81-P | Click here to download the file | | 03 | SHM03-3,81-P | Click here to download the file | | 04 | SHM04-3,81-P | Click here to download the file | | 05 | SHM05-3,81-P | Click here to download the file | | 06 | SHM06-3,81-P | Click here to download the file | | 07 | SHM07-3,81-P | Click here to download the file | | 08 | SHM08-3,81-P | Click here to download the file | | 09 | SHM09-3,81-P | Click here to download the file | | 10 | SHM10-3,81-P | Click here to download the file | | 11 | SHM11-3,81-P | Click here to download the file | | 12 | SHM12-3,81-P | Click here to download the file | | 13 | SHM13-3,81-P | Click here to download the file | | 14 | SHM14-3,81-P | Click here to download the file | | 15 | SHM15-3,81-P | Click here to download the file | | 16 | SHM16-3,81-P | Click here to download the file | | 17 | SHM17-3,81-P | File not available for this product | | 18 | SHM18-3,81-P | File not available for this product | | 19 | SHM19-3,81-P | File not available for this product | | 20 | SHM20-3,81-P | File not available for this product | | 21 | SHM21-3,81-P | File not available for this product | | 22 | SHM22-3,81-P | File not available for this product | | 23 | SHM23-3,81-P | File not available for this product | | 24 | SHM24-3,81-P | File not available for this product |
|

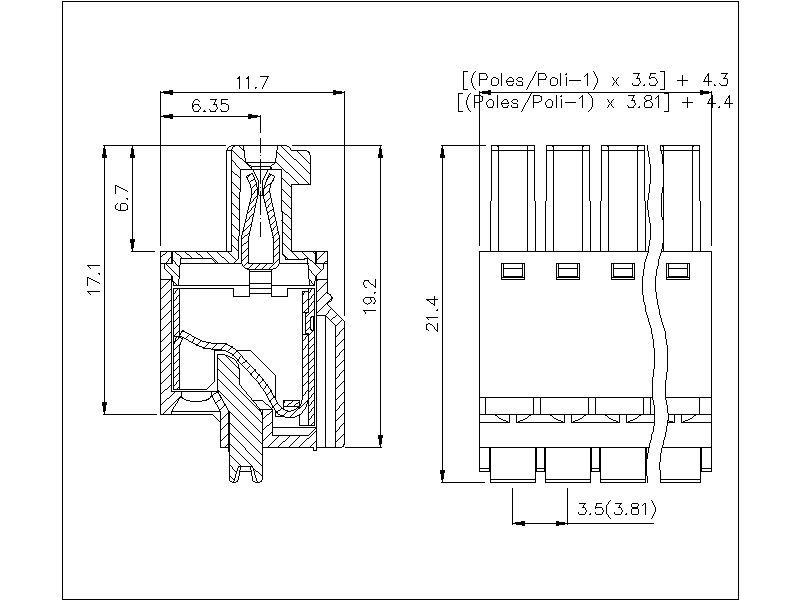

| DIMENSIONAL IMAGE |  |
|
