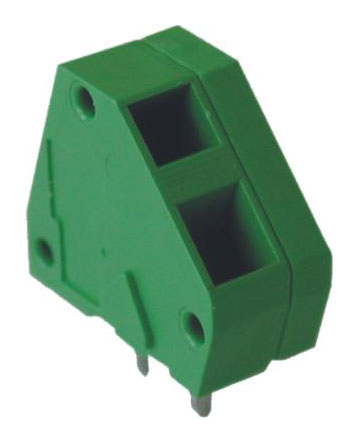

GENERAL INFORMATION |
pitch |
5,08 mm |
Height |
14.3 mm |
Depth |
16.75 mm |
Dimensional class |
Bassa |
Wire section |
2.5 mm² / 14 AWG |
Clamp opening size |
2.45 x 2.45 mm |
Wire stripping |
max 9 mm |
Operating temperature |
-40 ÷ +130 °C |
ELECTRICAL CHARACTERISTICS |
Current |
24 A |
Voltage |
250 V |
impulse voltage |
2 kV |
MECHANICAL CHARACTERISTICS |
Screw |
- |
Recommended torque |
- |
APPROVALS DATA |
|
|
|
|
|
|
|
UL 1059 |
Current |
- |
- |
17 A factory / 17 A field |
Voltage |
- |
- |
300 V |
Wire section |
- |
- |
12 AWG |
Torque |
- |
- |
- |
FILE |
- |
- |
E178356 |
MATERIALS |
Housing |
PA - UL 94 V0 |
Screw |
- |
Spring | Spring steel |
Terminal |
Tin-plated copper alloy |
COLOURS |
Standard |
On request |
|
|
POLES | NAME | 3D FILE | 01 | MG101-5,08 | Click here to download the file | 02 | MG102-5,08 | File not available for this product | 03 | MG103-5,08 | File not available for this product | 04 | MG104-5,08 | File not available for this product | 05 | MG105-5,08 | File not available for this product | 06 | MG106-5,08 | File not available for this product | 07 | MG107-5,08 | File not available for this product | 08 | MG108-5,08 | File not available for this product | 09 | MG109-5,08 | File not available for this product | 10 | MG110-5,08 | File not available for this product | 11 | MG111-5,08 | File not available for this product | 12 | MG112-5,08 | File not available for this product | 13 | MG113-5,08 | File not available for this product | 14 | MG114-5,08 | File not available for this product | 15 | MG115-5,08 | File not available for this product | 16 | MG116-5,08 | File not available for this product | 17 | MG117-5,08 | File not available for this product | 18 | MG118-5,08 | File not available for this product | 19 | MG119-5,08 | File not available for this product | 20 | MG120-5,08 | File not available for this product | 21 | MG121-5,08 | File not available for this product | 22 | MG122-5,08 | File not available for this product | 23 | MG123-5,08 | File not available for this product |
|
DIMENSIONAL IMAGE | |
|
